We recently exceeded the capacity for one of our Amazon ELBs in a 60 second period. One of the points of our debrief was to monitor the network from the ELB. Amazon doesn’t provide statistics from ELBs to Amazon cloudwatch. So I came up with the following:

Running the above in a lambda function with a scheduled event every 5 minutes will create the relevant filters and cloudwatch logs. This takes the overhead out of analysing the VPC flow logs.

Amazon ELBs rotate their servers and the attached ENIs will obviously rotate, so the second part is to identify whether the ENIs have been released and clean up.

amazon-elb-lambda-vpc-flow-statistics.2015-12-16-02-38-58

Amazon ELBs will add/remove nodes to/from DNS, which should be faster than a 5 minute period (the current minimum for a scheduled task).
As such the time taken to start graphing new ENIs added to the ELBs will not be immediate. The above graphs should help us to infer an increase in network traffic through the ELB and to observe to set sensible alarms.



I always forget the order to concatenate SSL certificates and to upload to Amazon ELBs as well as commands to verify SSL certificates.

Extract dates from certificate

echo | openssl s_client -connect co.photobox.com:443 2>/dev/null | openssl x509 -noout -dates
notBefore=Feb 10 00:00:00 2015 GMT
notAfter=Jun  9 23:59:59 2016 GMT

cat 14619087repl_1.crt | openssl x509 -noout -dates

List DNS entries for SANs certificates

echo | openssl s_client -connect co.photobox.com:443 2>/dev/null | openssl x509 -noout -text | grep DNS | sed -r 's/[ ]+DNS://g;s/,/\n/g'

Extract certificate

openssl x509 -inform PEM -in xxx.crt

Concatenation of SSL Certificates for Comodo

cat COMODORSAOrganizationValidationSecureServerCA.crt COMODORSAAddTrustCA.crt AddTrustExternalCARoot.crt >> gd_bundle.crt;

Upload SSL certificates

aws iam upload-server-certificate \
    --server-certificate-name sans-photobox-com-intermediate-expires-09-06-2016-v2 \
    --certificate-body file://14619087repl_1.crt \
    --private-key file://../co.key \
    --certificate-chain file://gd_bundle.crt

A quick script to update Amazon ELB SSL Negotiation policies for all Amazon ELBs.
The security policies are managed from Amazon and will only update the predefined security policies, choosing the latest one.

More information available on AWS predefined negotiation policies.

Sample output…

I recently converted a number Amazon Opsworks instances to be time based, so that they shut down at the end of the working day.
After doing so, I kept seeing that the Opsworks life cycle events always being marked as in progress.



amazon.opsworks.failed.reboot



Every morning the instances would be marked booting and would be able to SSH into the instances and the applications would be running on them.
When I finally managed to investigate this morning I figured out why this was occurring and was a little surprised how amazon run the opsworks agent.

We have a number of custom monit configurations to ensure that our own applications are running. These do not interfere with the Amazon Opsworks monit configuration.
The development/qa team occasionally stop monit when doing development work or switching branches on these instances.

As can be seen from the following…

[UTC Oct 9 09:50:14] info : monit: generated unique Monit id 437edc13afbe8e51fde4501f9af8db8f and stored to ‘/var/lib/monit/id’
[UTC Oct 9 09:50:14] info : Starting monit daemon
[UTC Oct 9 09:50:14] info : ‘ip-10-75-15-96.eu-west-1.compute.internal’ Monit started
[UTC Oct 9 09:54:35] info : monit daemon with pid [6927] killed
[UTC Oct 9 09:54:35] info : ‘ip-10-75-15-96.eu-west-1.compute.internal’ Monit stopped

Amazon opsworks doesn’t use any form of upstart/init.d/systemd so when servers boot up its reliant on monit to be started. If the last state is monit being stopped this will fail to run opsworks and you will see the above state.

$ egrep -rin opsworks /etc/rc* /etc/init.d/

I’ve asked our development team to disable the correct processes within monit

E.g.

$ monit unmonitor node_checkout_process

It would be sensible not to rely on monit and have a relevant script to spawn the process on server restart.

root@nodejs-dev-andy:/opt/aws/opsworks/current/bin# ./opsworks-agent-cli agent_report
Pidfile /var/lib/aws/opsworks/pid/opsworks-agent.pid present but no matching process running - cleaning up

AWS OpsWorks Instance Agent State Report:

Last activity was a "configure" on 2014-09-26 18:03:22 UTC
Agent Status: No AWS OpsWorks agent running
Agent Version: 325, up to date

Hopefully Amazon will improve the way the opsworks agent is spawned.

A while back I wrote an awk script to process a custom log file to work out how an application was performing over a period of time.
The following script takes a timestamp in field one $1 and also an arbitrary field $10 in this case.

For every 100 lines of the log file processed it would calculate the min, max, avg, stddev for rolling stats.

zcat Summary.2012-12-09.gz | grep '2012-12-09 20:[234]' | awk '
  BEGIN{
    size=50;
    tmax = -999999999;
    tmin = 999999999;
  }
  {   # Accumulate basic data
      cnt[$10]++;
      item[++n] = $10;
      if ($10 > max) max = $10; if ($10 < min) min = $10;
      if ($10 > tmax) tmax = $10; if ($10 < tmin) tmin = $10;
  }
  {
    mod=NR%size;
    if(NR<=size) {
      count++;
    } else {
      sum-=array[mod];
      min=max=$10;

    };
    total+=$10;
    sum+=$10; sumsq+=$10*$10;
    array[mod]=$10;
    print $1" "$2 "\tvalue: " $10 "\tmin: " min "\tmax: " max "\tavg: " sum/count "\tstddev: " sqrt(sumsq/NR - (sum/NR)**2)  "\t"
  }
  END {
    printf("\n\n# Lines processed = %d\n", NR);
    printf("# Total = %d\n", total);
    printf("# Sqrt = %d\n", sqrt(sumsq/NR - (sum/NR)**2));
    # Print Descriptive Statistics
    printf("# Count = %d\n", n);
    printf("# Min = %d\n", tmin);
    decile = 1;
    for (decile = 10; decile < 100; decile += 10) {
      idx = int((decile * n) / 100) + 1;
      printf("# %d%% decile = %d\n", decile, item[idx]);
      if (decile == 50)
        median = item[idx];
    }
    printf("# Max = %d\n", tmax);

    printf("# Median = %d\n", median);
    for (i in cnt) {
      if (cnt[i] > cnt[mode])
        mode = i;
    }
    printf("# Mode = %d\n", mode);
  }
' | less

...
2012-12-09 20:20:01     value: 18       min:    max: 18 avg: 5.8        stddev: 6.20967
2012-12-09 20:20:01     value: 7        min:    max: 18 avg: 6  stddev: 5.68624
2012-12-09 20:20:01     value: 7        min:    max: 18 avg: 6.14286    stddev: 5.27605
2012-12-09 20:20:01     value: 4        min:    max: 18 avg: 5.875      stddev: 4.98592
2012-12-09 20:20:01     value: 2        min:    max: 18 avg: 5.44444    stddev: 4.85595
2012-12-09 20:20:02     value: 3        min:    max: 18 avg: 5.2        stddev: 4.66476
2012-12-09 20:20:02     value: 4        min:    max: 18 avg: 5.09091    stddev: 4.46103
2012-12-09 20:20:02     value: 104      min:    max: 104        avg: 13.3333    stddev: 27.6687
2012-12-09 20:20:02     value: 2        min:    max: 104        avg: 12.4615    stddev: 26.7542
2012-12-09 20:20:02     value: 25       min:    max: 104        avg: 13.3571    stddev: 25.9824
2012-12-09 20:20:03     value: 3        min:    max: 104        avg: 12.6667    stddev: 25.234
2012-12-09 20:20:03     value: 3        min:    max: 104        avg: 12.0625    stddev: 24.5445
2012-12-09 20:20:03     value: 3        min:    max: 104        avg: 11.5294    stddev: 23.907
2012-12-09 20:20:03     value: 2        min:    max: 104        avg: 11 stddev: 23.3357
2012-12-09 20:20:03     value: 6        min:    max: 104        avg: 10.7368    stddev: 22.7407
2012-12-09 20:20:04     value: 4        min:    max: 104        avg: 10.4       stddev: 22.2135
2012-12-09 20:20:04     value: 3        min:    max: 104        avg: 10.0476    stddev: 21.7354
2012-12-09 20:20:04     value: 2        min:    max: 104        avg: 9.68182    stddev: 21.3017
2012-12-09 20:20:04     value: 70       min:    max: 104        avg: 12.3043    stddev: 24.1938
2012-12-09 20:20:04     value: 4        min:    max: 104        avg: 11.9583    stddev: 23.7425
2012-12-09 20:20:04     value: 12       min:    max: 104        avg: 11.96      stddev: 23.2628
2012-12-09 20:20:04     value: 14       min:    max: 104        avg: 12.0385    stddev: 22.8144
2012-12-09 20:20:04     value: 6        min:    max: 104        avg: 11.8148    stddev: 22.417
2012-12-09 20:20:04     value: 5        min:    max: 104        avg: 11.5714    stddev: 22.0493
2012-12-09 20:20:04     value: 2        min:    max: 104        avg: 11.2414    stddev: 21.7361
2012-12-09 20:20:04     value: 30       min:    max: 104        avg: 11.8667    stddev: 21.6344
2012-12-09 20:20:05     value: 5        min:    max: 104        avg: 11.6452    stddev: 21.3172
2012-12-09 20:20:05     value: 22       min:    max: 104        avg: 11.9688    stddev: 21.0587
2012-12-09 20:20:05     value: 4        min:    max: 104        avg: 11.7273    stddev: 20.7821
2012-12-09 20:20:05     value: 2        min:    max: 104        avg: 11.4412    stddev: 20.54
2012-12-09 20:20:05     value: 25       min:    max: 104        avg: 11.8286    stddev: 20.3701
2012-12-09 20:20:05     value: 27       min:    max: 104        avg: 12.25      stddev: 20.2394
2012-12-09 20:20:05     value: 3        min:    max: 104        avg: 12 stddev: 20.0203
2012-12-09 20:20:06     value: 2        min:    max: 104        avg: 11.7368    stddev: 19.8198
2012-12-09 20:20:06     value: 1        min:    max: 104        avg: 11.4615    stddev: 19.6375
2012-12-09 20:20:06     value: 2        min:    max: 104        avg: 11.225     stddev: 19.4467
2012-12-09 20:20:06     value: 36       min:    max: 104        avg: 11.8293    stddev: 19.5846
2012-12-09 20:20:06     value: 3        min:    max: 104        avg: 11.619     stddev: 19.3968
2012-12-09 20:20:06     value: 27       min:    max: 104        avg: 11.9767    stddev: 19.3096
2012-12-09 20:20:06     value: 2        min:    max: 104        avg: 11.75      stddev: 19.1467
2012-12-09 20:20:07     value: 5        min:    max: 104        avg: 11.6       stddev: 18.9589
2012-12-09 20:20:07     value: 2        min:    max: 104        avg: 11.3913    stddev: 18.8039
2012-12-09 20:20:07     value: 5        min:    max: 104        avg: 11.2553    stddev: 18.6256
2012-12-09 20:20:07     value: 4        min:    max: 104        avg: 11.1042    stddev: 18.4597
2012-12-09 20:20:07     value: 2        min:    max: 104        avg: 10.9184    stddev: 18.3156
2012-12-09 20:20:07     value: 4        min:    max: 104        avg: 10.78      stddev: 18.1574
...

# Lines processed = 9863
# Total = 80137
# Sqrt = 15
# Count = 9863
# Min = 1
# 10% decile = 8
# 20% decile = 1
# 30% decile = 3
# 40% decile = 3
# 50% decile = 17
# 60% decile = 7
# 70% decile = 5
# 80% decile = 1
# 90% decile = 4
# Max = 140
# Median = 17
# Mode = 2

I’ve implemented a number of sites with Elastic Search and recently had a two-day spike to implement Elastic Search for Photobox’s backoffice systems. As a result I have since wrote a presentation and presented at Photobox on Friday. I have posted the slides for the presentation here

I wrote this presentation using rvl.io – reveal.js, however unfortunately does not allow you to nicely export the presentation to pdf or other non html formats. Best viewed full screen

A few other interesting presentations I came across whilst writing up these slides.

Whilst recently looking into usage of SSL, I needed to analyse some logs from apache to determine requests per second.

Initially I wrote a quick bash script to do this, however figured it would be handy to elaborate on this, as a result I have posted a perl script on github at apache-log-stats

    total_requests=$(zcat b2f01_ApacheAccess.2011-12-05.gz | \
    sort -b -k4.9,4.12 -k4.5b,4.7Mb -k4.2,4.3 -k4.14,4 | \
    awk -F '[ [/:]' '{print $7"-"$6"-"$5":"$8":"$9":"$10}' | \
    sort | uniq -c  | sort -g | tail -n1);

    echo $total_requests;

And the perl script.

andrew@andrew-OptiPlex-7010:/var/www/logs/bin$ ./apache-log-stat $(ls ../logs/b2f*_ApacheAccess.2011-12-05.gz)
Processing
====================

../logs/b2f01_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.92    variance_requests_per_second: 25.93 total_requests:  413603 stddev_requests_per_second: 5.09    max_requests_per_second:   57
../logs/b2f02_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 6.05    variance_requests_per_second: 26.55 total_requests:  417711 stddev_requests_per_second: 5.15    max_requests_per_second:   45
../logs/b2f03_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 6.09    variance_requests_per_second: 26.64 total_requests:  419073 stddev_requests_per_second: 5.16    max_requests_per_second:   48
../logs/b2f04_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.07    variance_requests_per_second: 12.82 total_requests:  325374 stddev_requests_per_second: 3.58    max_requests_per_second:   29
../logs/b2f05_ApacheAccess.2011-12-05.gz - avg_requests_per_second:    0    variance_requests_per_second:    0  total_requests:    0    stddev_requests_per_second:    0    max_requests_per_second:    0
../logs/b2f06_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.20    variance_requests_per_second: 13.29 total_requests:  338946 stddev_requests_per_second: 3.65    max_requests_per_second:   30
../logs/b2f07_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.09    variance_requests_per_second: 12.92 total_requests:  330180 stddev_requests_per_second: 3.59    max_requests_per_second:   28
../logs/b2f08_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.08    variance_requests_per_second: 12.78 total_requests:  334373 stddev_requests_per_second: 3.57    max_requests_per_second:   33
../logs/b2f09_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.05    variance_requests_per_second: 12.66 total_requests:  327368 stddev_requests_per_second: 3.56    max_requests_per_second:   28
../logs/b2f10_ApacheAccess.2011-12-05.gz - avg_requests_per_second:    0    variance_requests_per_second:    0  total_requests:    0    stddev_requests_per_second:    0    max_requests_per_second:    0
../logs/b2f11_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.51    variance_requests_per_second: 15.00 total_requests:  370115 stddev_requests_per_second: 3.87    max_requests_per_second:   35
../logs/b2f12_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.43    variance_requests_per_second: 14.41 total_requests:  357580 stddev_requests_per_second: 3.80    max_requests_per_second:   37
../logs/b2f13_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.47    variance_requests_per_second: 15.09 total_requests:  366275 stddev_requests_per_second: 3.88    max_requests_per_second:   36
../logs/b2f14_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.39    variance_requests_per_second: 14.51 total_requests:  363630 stddev_requests_per_second: 3.81    max_requests_per_second:   34
../logs/b2f15_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.40    variance_requests_per_second: 14.40 total_requests:  361463 stddev_requests_per_second: 3.80    max_requests_per_second:   41
../logs/b2f16_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.87    variance_requests_per_second: 17.03 total_requests:  403126 stddev_requests_per_second: 4.13    max_requests_per_second:   48
../logs/b2f17_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.90    variance_requests_per_second: 16.81 total_requests:  404777 stddev_requests_per_second: 4.10    max_requests_per_second:   37
../logs/b2f18_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.89    variance_requests_per_second: 16.89 total_requests:  407635 stddev_requests_per_second: 4.11    max_requests_per_second:   30
../logs/b2f19_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.82    variance_requests_per_second: 16.13 total_requests:  402808 stddev_requests_per_second: 4.02    max_requests_per_second:   36
../logs/b2f20_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 5.84    variance_requests_per_second: 16.44 total_requests:  404247 stddev_requests_per_second: 4.05    max_requests_per_second:   35
../logs/b2f21_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.91    variance_requests_per_second: 29.21 total_requests:  583211 stddev_requests_per_second: 5.40    max_requests_per_second:   41
../logs/b2f22_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.86    variance_requests_per_second: 28.31 total_requests:  575122 stddev_requests_per_second: 5.32    max_requests_per_second:   38
../logs/b2f23_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.68    variance_requests_per_second: 27.37 total_requests:  571349 stddev_requests_per_second: 5.23    max_requests_per_second:   39
../logs/b2f24_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.76    variance_requests_per_second: 27.80 total_requests:  571728 stddev_requests_per_second: 5.27    max_requests_per_second:   37
../logs/b2f25_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.90    variance_requests_per_second: 28.59 total_requests:  583242 stddev_requests_per_second: 5.35    max_requests_per_second:   51
../logs/b2f26_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.87    variance_requests_per_second: 28.02 total_requests:  576603 stddev_requests_per_second: 5.29    max_requests_per_second:   36
../logs/b2f27_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.91    variance_requests_per_second: 29.45 total_requests:  584972 stddev_requests_per_second: 5.43    max_requests_per_second:   42
../logs/b2f28_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.66    variance_requests_per_second: 27.15 total_requests:  561073 stddev_requests_per_second: 5.21    max_requests_per_second:   38
../logs/b2f29_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.83    variance_requests_per_second: 28.15 total_requests:  578100 stddev_requests_per_second: 5.31    max_requests_per_second:   47
../logs/b2f30_ApacheAccess.2011-12-05.gz - avg_requests_per_second: 7.74    variance_requests_per_second: 27.62 total_requests:  574167 stddev_requests_per_second: 5.26    max_requests_per_second:   39
Total:  avg_requests_per_second: 178.19 total_requests: 12507851    variance_requests_per_second: 581.99    stddev_requests_per_second: 125.99  max_requests_per_second: 1075


Requests per hour
====================

   00 #                                                                                                           199683 / 12507851 (  1.60% )  var: 12308168   rqs:  55    rqm: 3328
   01                                                                                                             121028 / 12507851 (  0.97% )  var: 12386823   rqs:  33    rqm: 2017
   02                                                                                                              92839 / 12507851 (  0.74% )  var: 12415012   rqs:  25    rqm: 1547
   03                                                                                                              79303 / 12507851 (  0.63% )  var: 12428548   rqs:  22    rqm: 1321
   04                                                                                                              76682 / 12507851 (  0.61% )  var: 12431169   rqs:  21    rqm: 1278
   05                                                                                                              96342 / 12507851 (  0.77% )  var: 12411509   rqs:  26    rqm: 1605
   06 #                                                                                                           141415 / 12507851 (  1.13% )  var: 12366436   rqs:  39    rqm: 2356
   07 #                                                                                                           245247 / 12507851 (  1.96% )  var: 12262604   rqs:  68    rqm: 4087
   08 ###                                                                                                         431089 / 12507851 (  3.45% )  var: 12076762   rqs: 119    rqm: 7184
   09 ####                                                                                                        589031 / 12507851 (  4.71% )  var: 11918820   rqs: 163    rqm: 9817
   10 #####                                                                                                       662950 / 12507851 (  5.30% )  var: 11844901   rqs: 184    rqm: 11049
   11 #####                                                                                                       637200 / 12507851 (  5.09% )  var: 11870651   rqs: 177    rqm: 10620
   12 #####                                                                                                       739012 / 12507851 (  5.91% )  var: 11768839   rqs: 205    rqm: 12316
   13 ######                                                                                                      780787 / 12507851 (  6.24% )  var: 11727064   rqs: 216    rqm: 13013
   14 ######                                                                                                      779051 / 12507851 (  6.23% )  var: 11728800   rqs: 216    rqm: 12984
   15 #####                                                                                                       667872 / 12507851 (  5.34% )  var: 11839979   rqs: 185    rqm: 11131
   16 ######                                                                                                      750655 / 12507851 (  6.00% )  var: 11757196   rqs: 208    rqm: 12510
   17 ######                                                                                                      804304 / 12507851 (  6.43% )  var: 11703547   rqs: 223    rqm: 13405
   18 #####                                                                                                       740101 / 12507851 (  5.92% )  var: 11767750   rqs: 205    rqm: 12335
   19 ######                                                                                                      795684 / 12507851 (  6.36% )  var: 11712167   rqs: 221    rqm: 13261
   20 #######                                                                                                     973406 / 12507851 (  7.78% )  var: 11534445   rqs: 270    rqm: 16223
   21 #######                                                                                                     979602 / 12507851 (  7.83% )  var: 11528249   rqs: 272    rqm: 16326
   22 #####                                                                                                       724108 / 12507851 (  5.79% )  var: 11783743   rqs: 201    rqm: 12068
   23 ###                                                                                                         400460 / 12507851 (  3.20% )  var: 12107391   rqs: 111    rqm: 6674


Comparison by distribution over an hour
====================

   00 ####################                                                                                      199683 / 979602 ( 20.38% )  var: 779919 rqs:  55    rqm: 3328
   01 ############                                                                                              121028 / 979602 ( 12.35% )  var: 858574 rqs:  33    rqm: 2017
   02 #########                                                                                                  92839 / 979602 (  9.48% )  var: 886763 rqs:  25    rqm: 1547
   03 ########                                                                                                   79303 / 979602 (  8.10% )  var: 900299 rqs:  22    rqm: 1321
   04 #######                                                                                                    76682 / 979602 (  7.83% )  var: 902920 rqs:  21    rqm: 1278
   05 #########                                                                                                  96342 / 979602 (  9.83% )  var: 883260 rqs:  26    rqm: 1605
   06 ##############                                                                                            141415 / 979602 ( 14.44% )  var: 838187 rqs:  39    rqm: 2356
   07 #########################                                                                                 245247 / 979602 ( 25.04% )  var: 734355 rqs:  68    rqm: 4087
   08 ############################################                                                              431089 / 979602 ( 44.01% )  var: 548513 rqs: 119    rqm: 7184
   09 ############################################################                                              589031 / 979602 ( 60.13% )  var: 390571 rqs: 163    rqm: 9817
   10 ###################################################################                                       662950 / 979602 ( 67.68% )  var: 316652 rqs: 184    rqm: 11049
   11 #################################################################                                         637200 / 979602 ( 65.05% )  var: 342402 rqs: 177    rqm: 10620
   12 ###########################################################################                               739012 / 979602 ( 75.44% )  var: 240590 rqs: 205    rqm: 12316
   13 ###############################################################################                           780787 / 979602 ( 79.70% )  var: 198815 rqs: 216    rqm: 13013
   14 ###############################################################################                           779051 / 979602 ( 79.53% )  var: 200551 rqs: 216    rqm: 12984
   15 ####################################################################                                      667872 / 979602 ( 68.18% )  var: 311730 rqs: 185    rqm: 11131
   16 ############################################################################                              750655 / 979602 ( 76.63% )  var: 228947 rqs: 208    rqm: 12510
   17 ##################################################################################                        804304 / 979602 ( 82.11% )  var: 175298 rqs: 223    rqm: 13405
   18 ###########################################################################                               740101 / 979602 ( 75.55% )  var: 239501 rqs: 205    rqm: 12335
   19 #################################################################################                         795684 / 979602 ( 81.23% )  var: 183918 rqs: 221    rqm: 13261
   20 ###################################################################################################       973406 / 979602 ( 99.37% )  var:   6196 rqs: 270    rqm: 16223
   21 ####################################################################################################      979602 / 979602 (100.00% )  var:      0 rqs: 272    rqm: 16326
   22 #########################################################################                                 724108 / 979602 ( 73.92% )  var: 255494 rqs: 201    rqm: 12068
   23 ########################################

At Everlution we did a hack day to help motivate developers and to get the team working together. We started at 8.30am and finished at 5pm. It was pretty impressive what all the teams managed to achieve, with four teams of two developers and a designer.

It was set out in a competition style event with all teams competing against each other with a defined set of points for each task achieved. The tasks were very ambitious considering we had a day to complete the task.

The key task was to analyse a webcam and determine whether a meeting room was in use or not by analysing the web cams jpeg stream.

The motivation for which is that many staff members book meeting rooms and don’t use them or randomly hijack meeting rooms.

Task sheet/Points

# Task Points*
1 To build a webpage that tells the user if the boardroom is in use or not by parsing the JPEG stream emitted from the webcam.
Scoring:

  • Web page displays in real time whether Boardroom is in use or not.
  • Using own parsing algorithm for detection and not an off-the-shelf library
  • Detection system to not trigger with someone going in/out of Studio 2
  • +35 points
  • +15 points
  • +10 points
2 To use a Face detection and recognition library to say whether one member of your team is in the Boardroom or not.
  • +20 points
3 To build an MSN or Skype Bot that will answer a natural language question on whether the Boardroom is in use or not. Must be able to handle at least 3 variations of how question could be asked.
Scoring:

  • MSN bot or Skype bot:
  • Using own parsing algorithm for detection and not an off-the-shelf library
  • Also answers whether one of your team is in the room or not
  • +15 points
  • +10 points
4 To build a native mobile app that will display same information.
Scoring:

  • Android or iPhone
  • +10 points
5 To come up with a name, brand/logo and design for the service.
Scoring:

  • Design
  • Build/Implementation
  • +15 points
  • +10 points
6 Bonus: Good team work
  • +5 points
7 Bonus: Quality, reliability and elegance of solution
  • +5 points
8 Sabotaging another team’s effort, being disruptive, not participating in spirit of competition, etc.
  • -150 points

With regards to “Detection system to not trigger with someone going in/out of Studio 2″. There is a door going into the boardroom and a door just outside going into another office of Everlution. So any body outside the glass should not be detected going into that office.

The implementations varied drastically between teams, some based on motion.

Team 1 – My Team:

Used a C# client application to detect motion in real time from the remote image and/or directly attached camera using AForge.

The sample client was more than enough and simply ran a timed event to push the stats across over http to a PHP based API and store within a MySQL database. The web page then polled periodically to check the availability from the MySQL database, which produces the following data set. If the motion_level was above 0.02 it would indicate the room is occupied. This histogram is indicated at the bottom of the image stream.

The main issue was that it took me till 11am to install Visual Studio. Additionally the implementation was improved by adjusting the motion detection method depending on whether the stream was sourced from the camera itself or by the image, which was updated every two seconds.

{

   "boardroom" : {

      "data" : {

         "date_created" : "2012-07-24 00:14:19",

         "name" : "boardroom",

         "signal_time" : "24/07/2012 00:14:20",

         "fqdn" : "HP28458242993",

         "motion_level" : "0.000406901",

         "detected_objects_count" : "-1",

         "has_motion_been_detected" : "",

         "id" : "19945",

         "motion_alarm_level" : "0.015",

         "flash" : "0"

      },

      "last_used" : {

         "date_created" : "2012-07-24 00:14:19",

         "name" : "boardroom",

         "signal_time" : "24/07/2012 00:14:20",

         "fqdn" : "HP28458242993",

         "motion_level" : "0.000406901",

         "detected_objects_count" : "-1",

         "has_motion_been_detected" : "",

         "id" : "19945",

         "motion_alarm_level" : "0.015",

         "flash" : "0"

      },

      "is_free" : true

   }

}

AForge is an excellent library and provides the following…

  • AForge.Imaging – library with image processing routines and filters
  • AForge.Vision – computer vision library
  • AForge.Neuro – neural networks computation library
  • AForge.Genetic – evolution programming library
  • AForge.Fuzzy – fuzzy computations library
  • AForge.MachineLearning – machine learning library
  • AForge.Robotics – library providing support of some robotics kits
  • AForge.Video – set of libraries for video processing

In order to achieve face detection, I was going to use OpenCV, however ran out of time to fully implement. As such we implemented face.com to attempt face recognition. Unfortunately for all implementations this API failed to recognise anyone.

Additionally an MSN bot was built on put on top although did not implement any real natural language implementation.

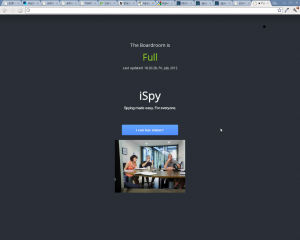

The results in action

Team 2:

The implementation was based on PHP Imagick using edge detection by enhancing the images with edgeImage and creating composite images.

Two sets of metrics were extracted for statistical analysis from the image. For all channels the mean, stddev from each image used (The raw image, the composite). A histogram was also generated for each channel with the std dev, variance and skew.

Team 2 were to use two important metrics that they did not manage to implement, however their intention was too…

These stats were then passed to Quinlan’s C4.5 and provided with some training pictures with people in the room or not.

The idea behind applying edge density & energy analysis was for the algorithm to learn about the room’s layout… i.e. moving a chair would not change density nor energy a lot, but adding another one would do, so theoretically this approach should learn about objects inside the room. Filtering by edge density to detect features would remove unimportant (not dense) objects such as chairs or people being too far away.

If C4.5 used that algorithm with enough data with people and other objects, it would learn itself about how to distinguish between a face and a chair.

Team 3:

Wrote their implementation using python with bindings for OpenCV. Initially loading the image creating 3 grayscale images.

  • Image 1: Last board room image
  • Image 2: The current board room image
  • Image 3: The AbsDiff between Image 1 and Image 2

Using ImageChops.difference the stats for the difference are stored in sqlite and divided by an average. If the condition is met it will mark the room as being occupied.

Snapshots from OpenCV can be seen below.

Team 4:

Used PHPs Imagick extension and the following function http://robert-lerner.com/imagecompare.php. They ran a series of slices whether someone was in the room and determined that if there was a 5% variance the meeting room was occupied.

The results in action

Other references

C Sharp / C / C++

Realtime Webcam Sudoku Solver

Motion Detection Algorithms

Face Detection in C#

Multiple face detection and recognition in real time

Emgu CV

Hands Gesture Recognition

Playing Card Recognition Using AForge.Net Framework

OpenCV

Feature detection

Motion Analysis and Object Tracking

Canny Edge Detector

Laplace Operator

Sobel Derivatives

I previously wrote about “Installing Java & MySQL – unattended/non-interactive installation”. Whilst using slack, I have been running apt-get during postinstall rather than preinstall.
Files are transferred from slack after preinstall as such transferring any files that conflict with the packages configuration files, apt-get will prompt regardless of DEBIAN_FRONTEND=noninteractive. Not ideal if your trying to run non-interactive. You can use the -o option to circumvent this…

apt-get -o Dpkg::Options::='--force-confdef' -o Dpkg::Options::='--force-confold'  -f -q -y php-cli

Previous example of non-interactive installations.

INSTALLER_LOG=/var/log/non-interactive-installer.log

installnoninteractive(){
    sudo bash -c "DEBIAN_FRONTEND=noninteractive aptitude install -o Dpkg::Options::='--force-confdef' -o Dpkg::Options::='--force-confold'  -f -q -y $* >> $INSTALLER_LOG"
}

assert_package() {
    is_installed=$(apt-cache policy "$1" | grep 'Installed: (none)' | wc -l);
    if [ "$is_installed" -eq "1" ] ; then
        #apt-get install -q -y $1;
        installnoninteractive $1;
    fi;
}

A nice tip for logging data against apache logs within requests. Apache_note is a wrapper for Apache’s table_get and table_set. It edits the table of notes that exists during a request. The table’s purpose is to allow Apache modules to communicate.


if (function_exists('apache_note')) {

    if (isset($_SESSION) && !empty($_SESSION)) {
        apache_note('session_id',     session_id());
        apache_note('users_id',       isset($_SESSION['users_id'])? $_SESSION['users_id'] : null);

    }

    apache_note('start_time',     isset($_SERVER['REQUEST_TIME'])? $_SERVER['REQUEST_TIME'] : null);
    apache_note('end_time',       time());
    apache_note('peak_memory',    memory_get_peak_usage());

}

This will allow the variable to be exposed to apache logs in the form of the following.


LogFormat "%{session_id}n %{users_id}n " combined

You can easily add this globally by using the auto_append_file directive in the php ini.


auto_append_file = /var/www/footer.php

Additionally it is quite handy to include the following in a custom log format for debugging purposes. For example if you have hung apache processes.

Format String Description
%…D The time taken to serve the request, in microseconds.
%…B Size of response in bytes, excluding HTTP headers.
%…P The process ID of the child that serviced the request.
%…{format}P The process ID or thread id of the child that serviced the request. Valid formats are pid and tid. (Apache 2.0.46 and later)
%…X Connection status when response is completed:
X = connection aborted before the response completed.
+ = connection may be kept alive after the response is sent.
– = connection will be closed after the response is sent.
(This directive was %…c in late versions of Apache 1.3, but this conflicted with the historical ssl %…{var}c syntax.)

Common Log Format with Virtual Host and above params


LogFormat "%v %h %l %u %t \"%r\" %>s %b %B %P %X %{session_id}n %{users_id}n %{peak_memory}n" custom_log

You can take this one step further and log these in realtime using Graphite, Logtailer and logster. This holds the offset from the last time you scanned your logs. So this will give you accurate graphs. I have also added a custom parser for PHP, which can be found here.

An example of this, although does not have any errors shown below (hidden the server names).

About this blog

I have been a developer for roughly 10 years and have worked with an extensive range of technologies. Whilst working for relatively small companies, I have worked with all aspects of the development life cycle, which has given me a broad and in-depth experience.
